SUNCOMM CP520 X75 AX3000 IPQ5018 Dual Band Waterproof IP67 2.5Gbps High-speed Interface POE Power Supply 5G Outdoor Router

SUNCOMM CP520 X75 AX3000 IPQ5018 Dual Band Waterproof IP67 2.5Gbps High-speed Interface POE Power Supply 5G Outdoor Router

3:-1#CP520;191288010:5412614#Gray;210204199:1875819447#1 x USB

Kz308,900.00 AOA
Kz0.00 AOA Kz308,900.00 AOA
Imposto incluído.
color
number of usb interfaces
model number
  • Envio Grátis & Devoluções neste artigo
  • Entrega entre 3-5 dias úteis
Ver detalhes completos

SPECIFICATIONS

2.4g wi-fi transmission rate: 600Mbps

5G network mode: SA / NSA

5g wi-fi transmission rate: 2167Mbps

Antennas: 6 external antennas

Brand: SUNCOMM

Chipset: IPQ5018+SDX62 / SDX75

Encryption Type: WPA2-PSK,WPA2,WPA3,WPA-PSK,WPA

Network: 4G/5G network

Power Consumption: POE 48V/1A

Product name: 5g outdoor router

SIM card slot: 2 SIM Card Support

Scene: Home, RV,SOHO

Supports WDS: Yes

Supports WPS: Yes

WAN Ports: 1*2.5Gbps

WIFI: 2.4G&5G

WiFi Transmission Standard: WiFi 802.11 ax

Wireless Speed: 2.4GHz: 600Mbps, 5.8G: 2400Mbps

application: Outdoor

function: FireWall,QoS,VPN,SDK available

lan ports: 1

max. lan data rate: 3000Mbps

place of origin: Guangdong, China

private mold: Yes

products status: New

standards and protocols: Wi-Fi 802.11g,Wi-Fi 802.11b,Wi-Fi 802.11n,Wi-Fi 802.11ac,Wi-Fi 802.11a,Wi-Fi 802.11ax

type: Wireless

wifi supported frequency: 2.4G & 5G

wired transfer rate: 2500Mbps

with modem function: Yes

Why Choose Us
Product Details
Model
CP520
CP520-X75
CPU
IPQ5018+Qualcomm Snapdragon X62
IPQ5018+Qualcomm Snapdragon X75



5G Frequency Bands
4G Frequency
5G NR NSA / SA：n1/2/3/5/7/8/12/13/14/18/20/25/26/28/29/30/38/40/41/48/66/70/71/75/76/77/78/79
LTE-FDD：B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/71
LTE-TDD：B34/ 38/39/40/41/42/43/48
5G NR NSA / SA Sub-6:
n1/2/3/5/7/8/12/13/14/18/20/25/26/29/30/34/38/39/40/41/46/53/66/67/68/70/71/75/76/77/78/79/90/91/91/92/93/94
LTE FDD: B1/2/3/4/5/7/8/12/13/14/17/18/19/20/25/26/28/29/30/32/66/70/71/75/76
LTE TDD: B34/38/39/40/41/48/46/53
WCDMA: B1/2/3/4/5/6/8/9/19
WiFi Frequency
WiFi 6：2.4G / 5.8G
WiF Standard
2.4G: 802.11b/g/n/ax,   5.8G: 802.11b/g/n//ac/ax

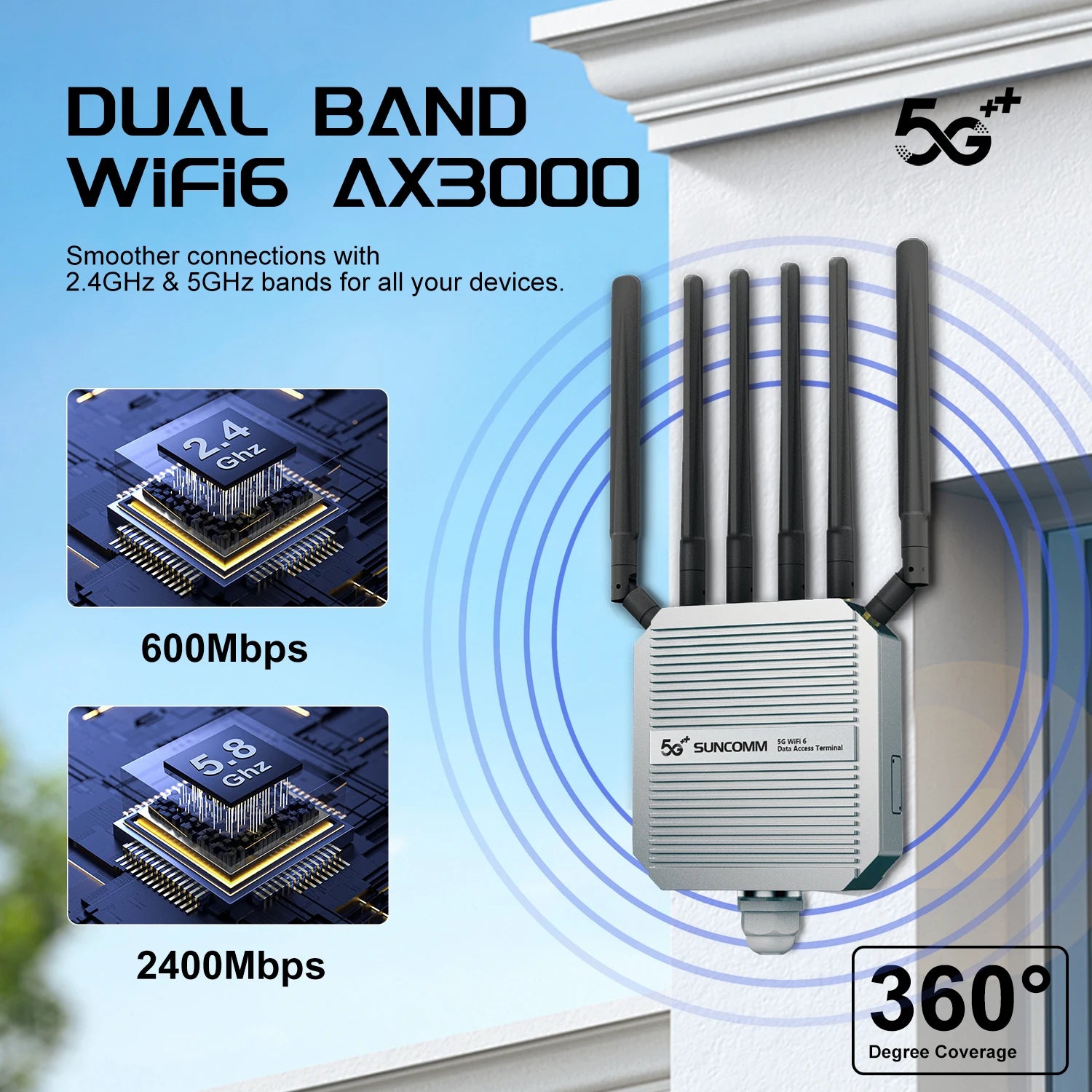

Wifi
2.4GHz: 600Mbps,  5.8G: 2400Mbps
5G NR
3GPP Release 16 NSA/SA operation,Sub-6 GHz

5G/4G Data Rate
5G SA Sub-6：
DL 2.4 Gbps; UL 900 Mbps
5G NSA Sub-6：
DL 3.4 Gbps; UL 550 Mbps
LTE：DL 1.6 Gbps; UL 200 Mbps
WCDMA：DL: 42 Mbps; UL: 5.76 Mbps
5G SA Sub-6：
DL: 7.01 Gbps; UL: 1.25 Gbps
5G NSA Sub-6：
DL: 5.47 Gbps; UL: 730 Mbps
LTE：DL: 2 Gbps; UL: 211 Mbps
WCDMA：DL: 42 Mbps; UL: 5.76 Mbps
Modulation Mode
5G：GMSK/BPSK/BPSK/QPSK/16QAM/64QAM/256QAM
WIFI：1024-QAM/OFDMA

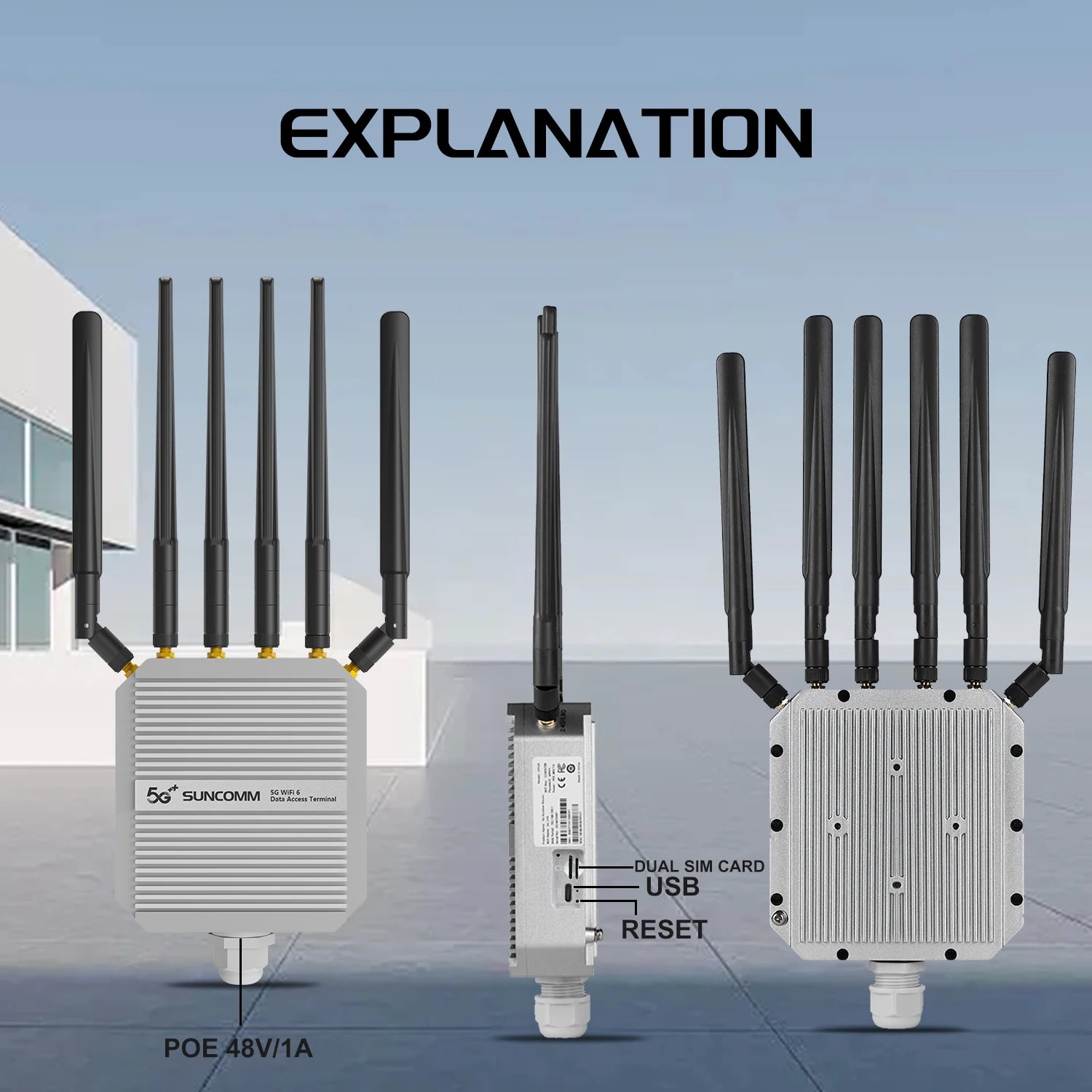

Interface
1×1000M/2500Mbps WAN
1 Reset Button
2 SIM card slot
LED Indicator
Link power,RF Signal,SIM Signal.SYS Signal
 Power Consumption
 <24W(POE 48V/1A)

 Environment
 Operating Temperature:-20℃～+50℃
Storage Temperature:-40℃～+70℃
Humidity: 5%～95%(Non condensation)
